DIY RAMP PLANS
MORE FREE KICKER RAMP PLANS
5 Foot WOOD Ramp Plans
This is a great all-around wooden kicker ramp, and a good size to pair with the Youth NextStep Lander Airbag Lander.
Materials needed:
(1) 4’ x 8’ sheet of plywood 3/4” for the sides
(2) 4’ x 8’ sheets of plywoood 3/8” for the layers
(7) 2’ x 4’ boards for the ribs
(100) screws 5mm x 60mm for the ribs
(150) screws 5mm x 45mm for the layers
Use 5 per rib for the bottom and 6 per rib for top layer
Optional: 3mm Metal sheet for toe plate
Cut your 2’ x 4’ boards in half, so you have (14) boards that are 4’ long
You can cut the top of the 350mm x 1220 mm section out of the “surfboard” shape from the side.
4 Foot WOOD RAMP PLANS
This 1 foot step-up take off ramp is perfect to pair with our Youth NextStep and Youth NextStep Plus landers.
Materials needed:
(8) 8 foot 2×4’s 44x95x2400mm for the ribs
(1) 4×8 sheet of 3/4” plywood for the sides
(2) 4×8 sheet of 3/8” plywood for the layers
(2) bits of scrap 3/4 inch for the bottom and top
(100) screws 4, 5x60mm for the ribs
(150) screws 4, 5x45mm for the layers
optional 3mm thick metal sheet for toe plate
6 Foot WOOD Ramp Plans
Great for the NextStep Pro Airbag landing and NextStep Pro PLUS landing.
7 Foot WOOD Ramp Plans
The 7 ft ramp plans after perfect for our MTB Next Step Lander.

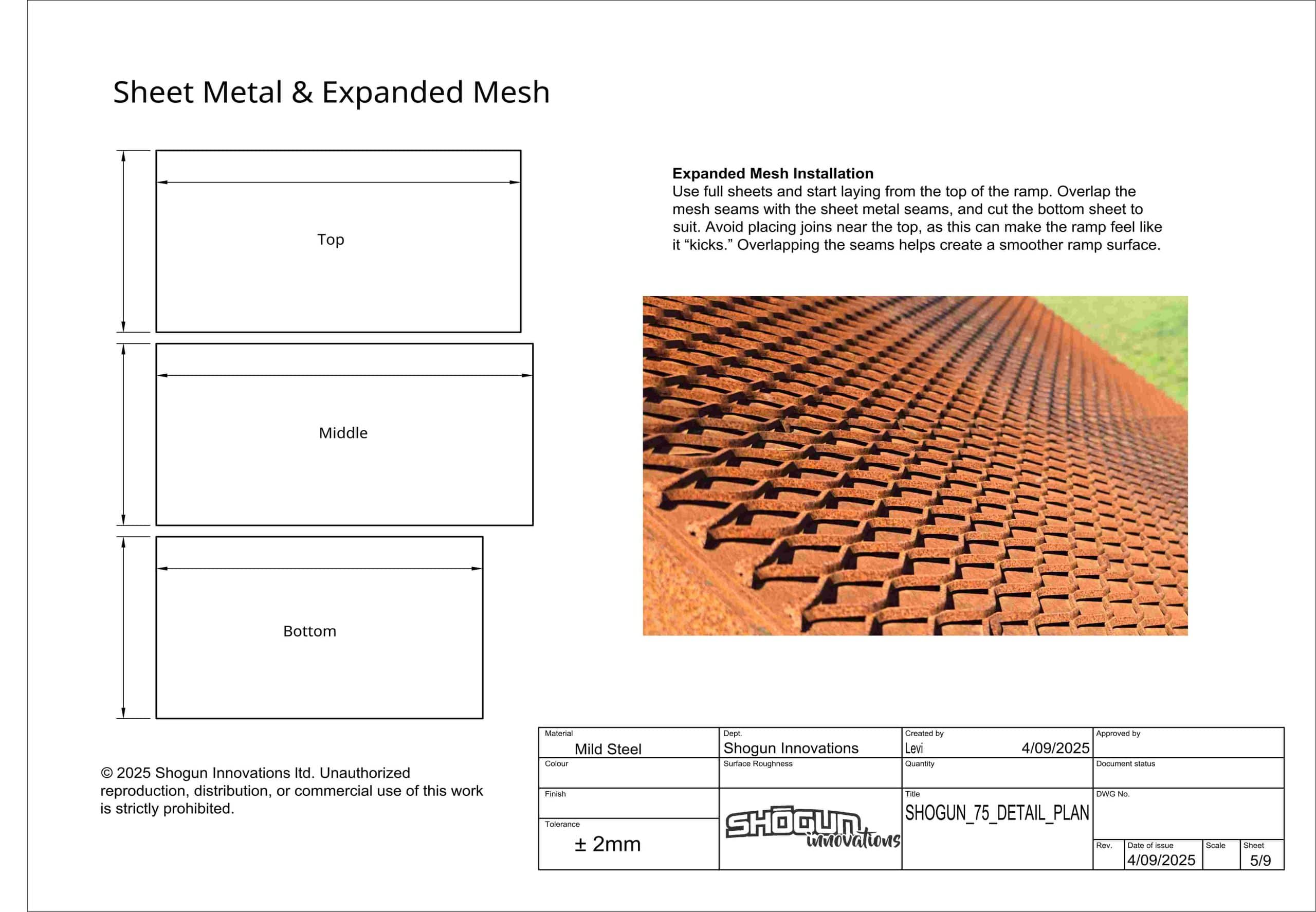

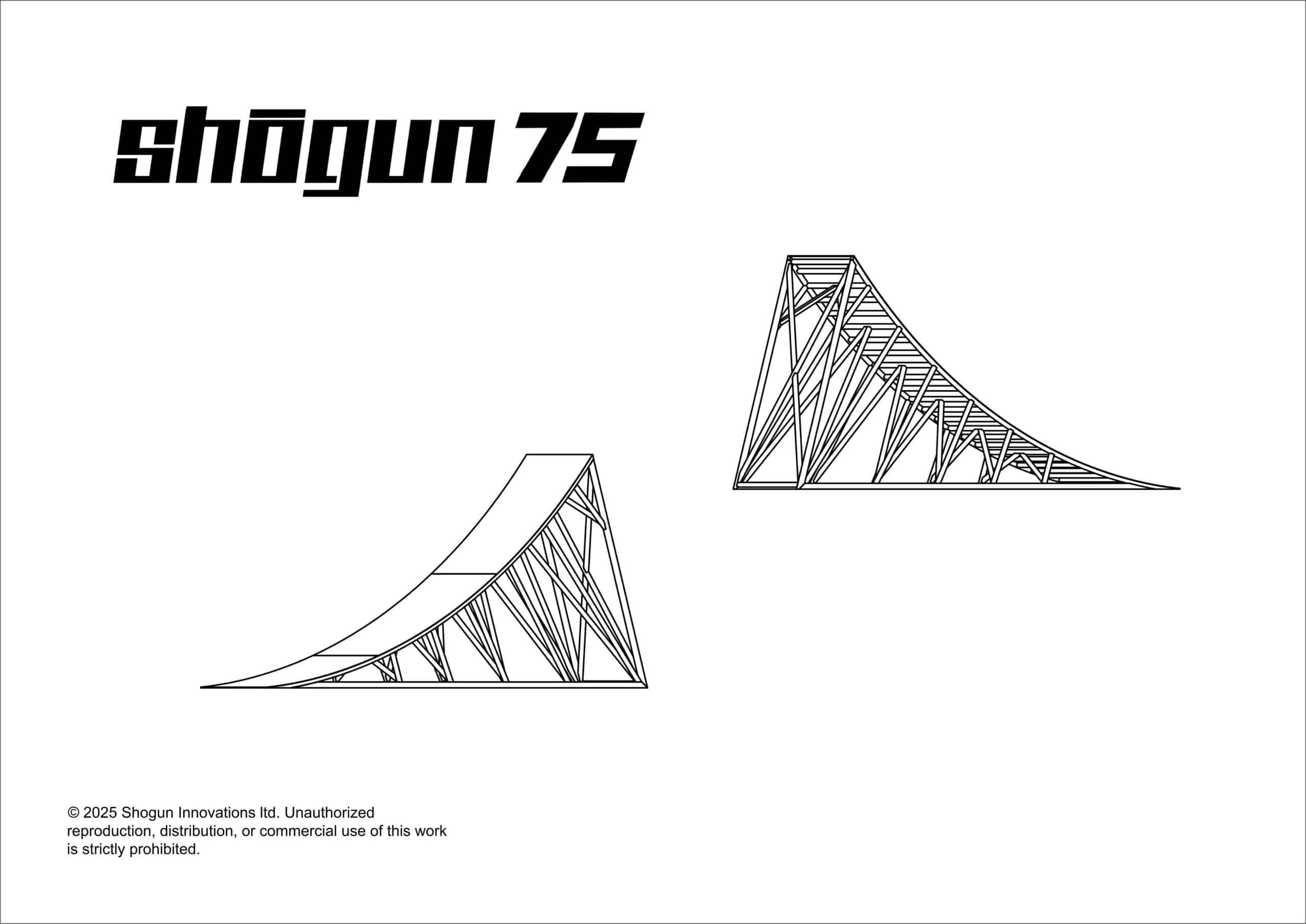

FMX kicker Ramp
If you would like some more free detailed Fmx ramp plans for your Fmx AirBag Landing, email us: dd@ddairbags.com
Want to build your own kicker ramp or want to know how to make your own?
Perfect Dimensions for the Pro Next Step Airbag Lander.
Use 1-1/4” Steel Square Tubing
Radius: 10.5 FT
Height 6 FT
Width 3 FT
If you have any kicker ramps that you would like for us to add, both mtb kicker ramps, fmx ramps or bmx kicker ramps, please send us an email.
